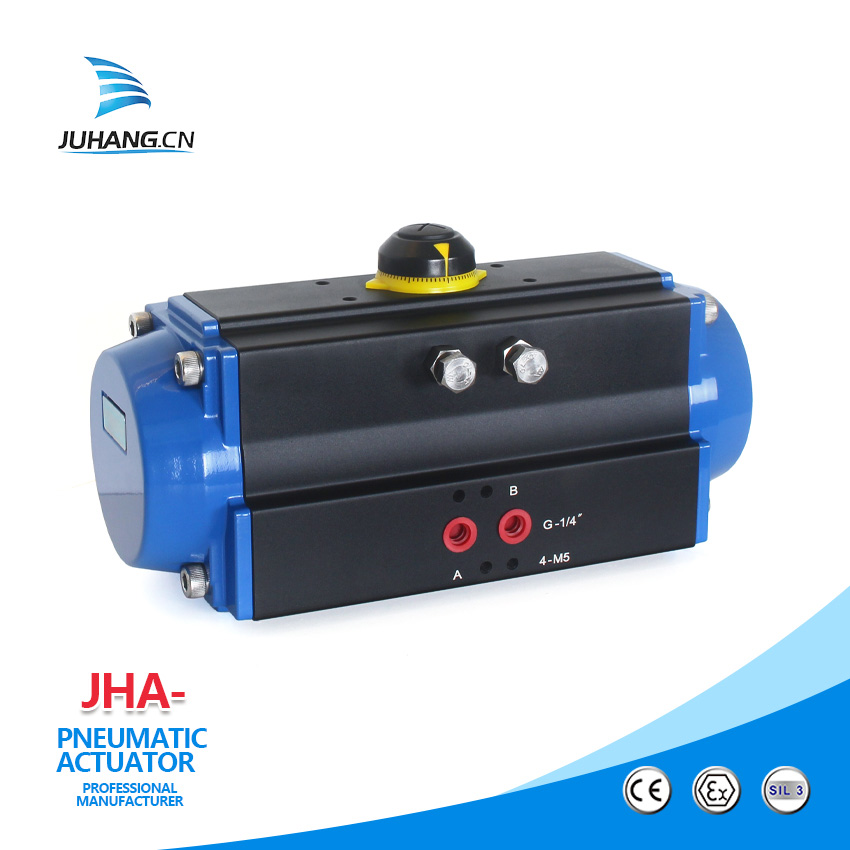

Spring Return Pneumatic Actuator

A spring return pneumatic actuator, also known as a pneumatic spring actuator or pneumatic return actuator, is a type of actuator that utilizes compressed air or gas to control the movement of valves, dampers, or other mechanical devices. It is specifically designed to provide automatic return or closing action when the air pressure is released or fails.

Here are some key features and characteristics of spring return pneumatic actuators:

1. Pneumatic Operation: Spring return actuators use compressed air or gas to generate force and control the motion. When air or gas pressure is applied, it pushes against the actuator's internal piston, causing the actuator to move and actuate the valve or mechanism. When the air pressure is released or fails, the actuator relies on the force of a preloaded spring to return to its original position.

2. Spring Return Mechanism: The spring return mechanism in the actuator is responsible for providing the necessary force to close or return the actuator to its default position. The spring is typically preloaded during installation to ensure adequate closing force when the air pressure is released.

3. Fail-Safe Operation: Spring return actuators are commonly used in applications where a fail-safe operation is required. In the event of a loss of air pressure or power supply, the actuator automatically returns to its default position, ensuring proper closure or safety measures.

4. Control and Positioning: Spring return pneumatic actuators can be controlled through various means, such as manual control valves, solenoid valves, or digital control systems. They can provide precise positioning and modulating control for accurate flow regulation.

5. Compact and Robust Design: Spring return actuators are typically designed to be compact, durable, and capable of withstanding harsh operating conditions. They are commonly made of materials such as aluminum or stainless steel to provide strength and corrosion resistance.

6. Safety Features: Some spring return pneumatic actuators are equipped with additional safety features like position indicators, limit switches, or manual override options. These features enhance operational safety, provide feedback on the actuator's position, or allow for manual operation in case of emergency or maintenance situations.

Spring return pneumatic actuators find applications in industries such as oil and gas, chemical, power generation, and water treatment. They are commonly used in safety-critical systems, such as emergency shutdown valves, fire protection systems, or process control applications where fail-safe operation is crucial.

When selecting a spring return pneumatic actuator, factors such as torque requirements, operating pressure, environmental conditions, and compatibility with the specific valve or mechanism should be considered. It is advisable to consult with actuator manufacturers or suppliers to ensure the appropriate actuator is chosen for the intended application.
